Gwaza 16" Top Link Tube 405mm Cat 1
Adjustment = 20 1/2" - 29" (521 - 737mm)

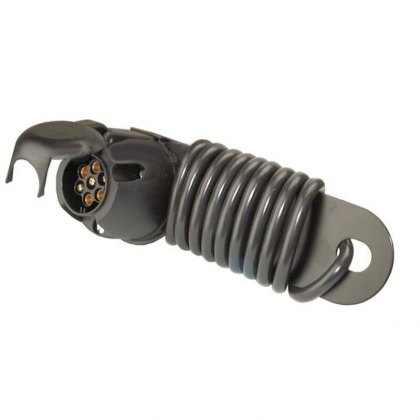

Gwaza Cable & 7 Pin Socket on Mounting Plate 1.5m
Cable is 7 core and 1.5 metres.
Gwaza Implement Mounting Pin
1 3/4": Useable length = 1 3/4". Shoulder length = 7/8" (22mm). Shoulder dia. = 7/8" (22mm). Thread = 7/8" UNF.
2 1/8": Useable length = 2 1/8". Shoulder length = 7/8" (22mm). Shoulder dia. = 7/8" (22mm). Thread = 7/8" UNF.
Gwaza Implement Mounting Pin 1UNF Cat1/2 No Shoulder
Useable length Cat 1 = 1 3/4", Cat 2 = 2 1/8".
Thread = 1 UNF.
No shoulder.
Gwaza Jockey Wheel & Clamp 48mm 150kg NWL
Steel wheel.
Normal Working Load = 150kg.
Wheel Size = 40mm x 200mm dia.
Spindle Size = 58mm x 20 mm dia.
Spare Wheel = 5211.
Height O/A Closed 600mm, open 870mm.

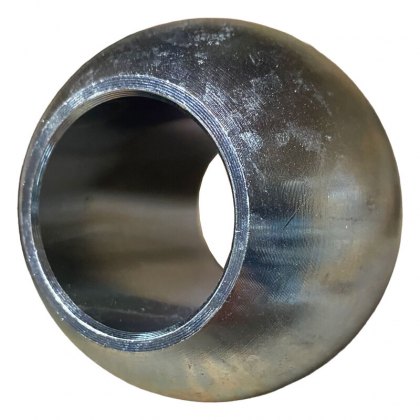

Gwaza Lower Link Ball
Cat 2 Ball/Cat 2 pin: Hole dia = 1 9/64" (29mm). Ball dia = 2 13/64" (56mm). Width across flats = 1 49/64" (45mm).
Cat 3 Ball/Cat 2 pin: Hole dia = 1 9/64" (29mm). Ball dia = 2 1/2" (63.5mm). Width across flats = 1 49/64" (45mm).
Gwaza Metal Plug 7 Pin Male
Trailer plug suits 7 core cable.
Gwaza Metal Socket 7 Pin Female
3 hole round side flange.
Gwaza Mounting Plate for 7 & 13 Pin Sockets
Mounting holes centre to centre: 34mm.
Gwaza Plastic Socket 7 Pin Female
3 hole flat side flange.
Gwaza Plastic Trailer Plug 3 Pin Male
Includes removable plastic cap to prevent dust and water damage.
Gwaza Ribbed Jockey Wheel 48mm 500kg NWL
R Clip Style - Ribbed.
Normal Working Load = 500kg.
Wheel Size = 60mm x 200mm dia.
Spindle Size = 58mm x 20 mm dia.
M8 grease nipple.
Bearing = 6mm (outer sides = 3.25mm).
Height O/A closed 800mm, open 1000mm.
Gwaza Top Link Pin
19mm/83mm Cat 1: Pin dia. = 3/4" (19mm). Useable length = 3 1/4" (83mm). Head dia. = 7/8" (22.2mm).
19mm/121mm Cat 1: Pin dia. = 3/4" (19mm). Useable length = 4 3/4" (121mm). Head dia. = 7/8" (22.2mm).
25.4mm/98mm Cat 2: Pin dia. = 1" (25.4mm). Useable length = (98mm). Head dia. = 1 1/8" (28.5mm).
25.4mm/143mm Cat 2: Pin dia. = 1" (25.4mm). Useable length = 5 5/8" (143mm). Head dia. = 1 1/8" (28.5mm).
Gwaza Towing Linch Pin & Chain
3/4" x 3 7/8": Pin dia = 3/4" (19mm) Useable Length = 3 7/8" (98mm).
7/8" x 6": Pin dia. = 7/8" (22mm). Useable Length = 6" (152mm).
1" x 6": Pin dia. = 1" (25mm). Useable Length = 6" (152mm).
1 1/8" x 7 1/2": Pin dia. = 1 1/8" (29mm). Useable Length = 7 1/2" (192mm).
Gwaza Top Link Ball Quick Release
Hole dia = 1 9/32" (32.5mm).
Ball dia = 2 23/64" (60mm).
Width across flats = 2" (50.8mm).

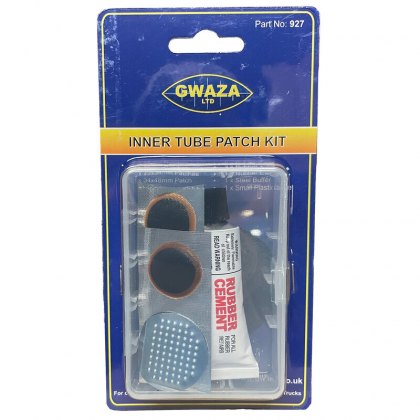

Gwaza Inner Tube Patch 8 Piece Kit
For cars, ATV, motorcycles, Trailers, Bicycles, RV and Light Trucks
Contents: 32mm x 2pc & 46mm x 2pc Self-adhesive Patch, Rubber Tube 2pc, Steel Buffer 1pc, Small Plastic Case 1pc.
Gwaza Lock Hitch & Round Padlock with Keys
3615 lock & 3617 round padlock with 2 keys.
Gwaza Tyre Valve 15 Piece Tool Kit C50
Contents: Plastic tyre valve cap x 4pcs. Chrome Brass Hex/Valve Cap x 4pcs. Standard Valve Core x 4pcs. Small Pencil Tire Gauge 10 - 50psi x 10pcs. 4 in 1 tyre valve tool x 1pc. Plastic box x 1pc.
Gwaza Pin Top Link Cat 1/Cat 2
Pin dia. = Cat 1 - 3/4" (19mm), Cat 2 - 1" (25mm).
Useable length = Cat 1 - 2 3/4" (70mm), Cat 2 - 4 1/16" (103mm).
Suitable for PZ Haybob.
Holes 5mm dia.
Gwaza Tow Hitch Dual Extended Ball 3500kg
D Value = 17.2Kn.
E11 R55 Homologated Approved (silver).
50mm ball and 25mm tow pin.
Maximum load is 3500kg.
Bolt holes x 2 at 16.4mm dia, 90mm centres.
Takes 2 x M16 (10.9TS) bolts (not supplied).
